E-mobility is one of the main development trends for automotive manufacturers while it also presents great technical challenges for system and machine builders in finding the ideal solutions for the production of electric vehicle components.

System components required in the assembly process are of crucial importance, as they must fulfill requirements for the utmost process reliability in category A assemblies (in accordance with VDI/VDE 2862), flexibility in the diversity of the product range on offer, specifications for traceability, and reliable electrostatic discharge (ESD capability).

Besides, these components demand an assembly environment which can reliably fulfil technical cleanliness directives and that also scores highly in relation to ergonomics and safety for employees.

These are the challenges faced in the development of the ideal system for the assembly of electric vehicle charging sockets for renowned manufacturers.

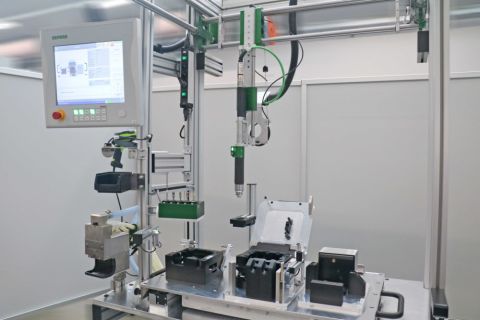

Intelligent manual work station for the assembly of charging sockets.

Nexans autoelectric, a notable automotive component supplier, relies on the expertise of the screwdriving and assembly specialists DEPRAG. Their flexible manual work station can be adapted to the current market situation and fulfills the demands of e-mobility.

The screw connections in the assembly of electric vehicle chargers are mainly category A safety-relevant screw joints. Process reliability is of utmost importance and all processing steps must be documented and monitored.

“By integrating DEPRAG automation components we can guarantee that the right numbers of the right screws are supplied at the right time”, said Stefan Rösl, project leader at DEPRAG. “Furthermore, we can ensure that they are supplied to the correct position and assembled using the correct bit.”

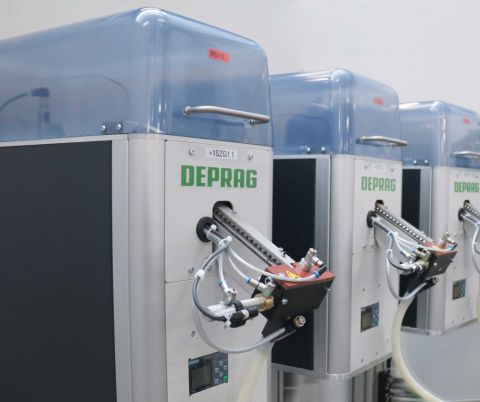

DEPRAG sword feeders for gentle, low abrasion screw feeding.

Ergonomic guidance of the EC servo screwdriver is handled by a DEPRAG position control portal which supervises the screw position with absolute precision. The in-built sensor technology communicates with the DEPRAG Processing Unit (DPU). Each screw position is approved ensuring the application of appropriate screwdriving parameters.

By means of the DPU, the entire process is monitored, screwdriving results are evaluated and any bit changes required for the screw position are indicated. Features also include, integrated network capability, smooth connection to MES systems and optimal data management. The touch screen integrated in the DPU enables step-by-step visual display of the assembly process for the user and the convenience of operating status control and display.

Another factor to consider in the assembly of charging sockets is the country-specific variations of electronic components. There are varying standards across Europe, China, Japan and the USA. The answer is provided with adaptors to modify the manual work station according to country specifications.

A “quick-docking-system” has been developed which automatically connects sensors and actuators inbuilt in the adaptor to the permanent control cabinet, and communicates with the controller.

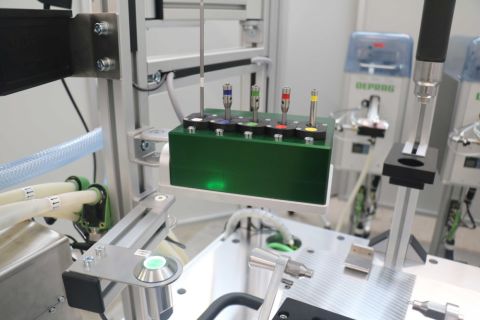

Toolbox for bit exchange.

DEPRAG feeding technology is another essential element of the manual work station. It increases the degree of automation and improves ergonomics.

The system’s technical cleanliness should equally be commended. Dirt particles can damage products or their related systems. DEPRAG sword feeders are implemented to ensure technical cleanliness in assembly. They guarantee gentle, low-friction screw feeding and separating, both in bulk and for individual parts. The CleanFeed concept is supported by the DEPRAG screw presenter with an integrated vacuum pump which removes particles from the screws.

In addition, highly sensitive electronic components are protected with the targeted discharge of electric charges. The ESD capable DEPRAG solutions are dependable, measurable and verifiable which is a great advantage for the end user.

“The flexible manual work station is an ideal and efficient solution. Planning uncertainties can be counteracted and several assembly processes combined in one system”, stated Johannes Wagner, Process Developer at Nexans autoelectric. “We have learnt through our collaboration that all our technical requirements can be realized using DEPRAG’s standard automation components.”
